BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST
BAY SERIES ELITE LEANING POST

BAY SERIES ELITE LEANING POST

Regular price
$ 1,130.00
Sale price
$ 1,130.00

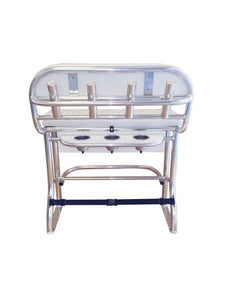

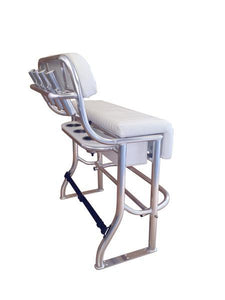

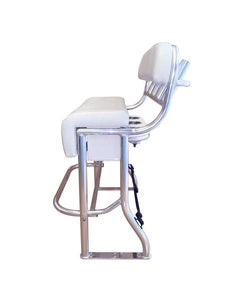

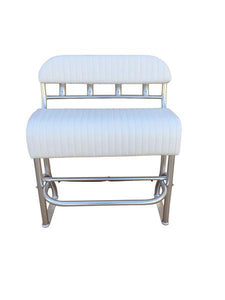

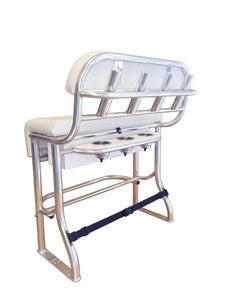

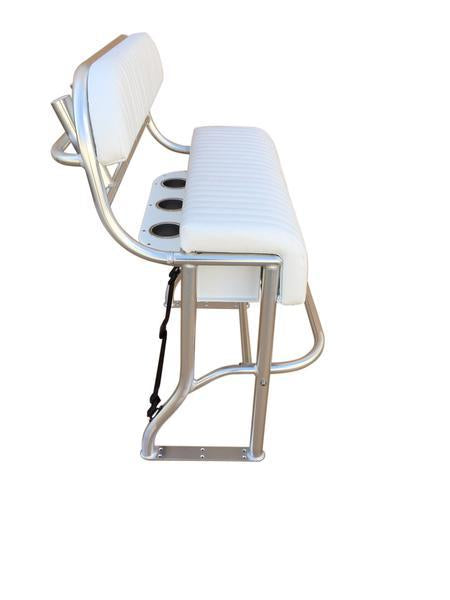

BAY SERIES ELITE
  • Item includes all accessories pictured and described herein.
  • Typically used in open-boat layouts aft the console, and greater than 18’ in overall length.
  • Overall depth of unit from face of cushion on the lean to the rear of grab rail is 24.5”.
  • Features a fixed backrest with four 8.5”x 1.5” straight rod holders.
  • 7” tall backrest cushion.

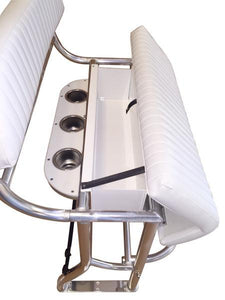

  • Features triple stainless cup holder package set in ½” starboard deck


GENERAL DETAILS FOR ALL ELEVATION LEANING POST
  • Constructed using schedule 40 anodized aluminum for durable finish (mill finish is used for powder coated products).
  • Standard height is 32” to top of seat cushion. (see FAQ’s if need a different height)
  • Four rod holders with soft liners (rod holder type varies depending on series).
  • Aluminum storage tray with a white powder coat finish.
  • Folding footrest.
  • 1.5"” wide nylon cooler strap attached with anodized metal footman loops.
  • Marine vinyl upholstery, sewn with sun-guard thread, and mounted on a ½” thick PVC board, attached to our hinging system with a stainless “T-nut” and stainless ¼” x 20 Bolts for a permanent installation.
  • Installation mounting plates are 2” wide and 14.5” long.
  • Standard height from vessel floor to the underside of storage tray is 21”
  • Opening width for cooler storage is overall unit width less 3.75”
  • Customer can choose up to two colors off vinyl chart at no additional cost.
  • FedEx ground shipping is always included in the purchase price, so there are no hidden costs to you.

NOTES
  • Installation kit includes; (12) #12 x 1.5" long SS Screws, drill bit for proper sized pilot hole & 1oz. tube of 3M-5200 sealant
  • Standard Vinyl Color and Type is White Pleat, however you may choose any color from our vinyl sample chart on the 'Vinyl Sample' page, as well as smooth vinyl in lieu of pleat. You will need to provide this information to us on the Cart page after you add your item to the cart, in the designated "Instructions to Seller" box.
  • See FAQ’s on homepage for “HOW TO MEASURE FOR YOUR NEW LEANING POST”
